Lippert?12? Electric Brake?&?Hub?Drum Kit w/?Bearing?Sets � 6?on?5.5?,?6K Triple?Axle (Dexter?/?Al?Ko?/?Quality Compatible)
$952.59
Lippert Triple‑Axle 12″ Brake, Hub‑Drum & Bearing Kit – 6‑on‑5.5″, 6K (Dexter / Al‑Ko Compatible)
Give your trailer dependable stopping performance with this complete Lippert bundle. Engineered for triple‑axle (6‑wheel) setups, it pairs forward self‑adjusting 12″ electric brakes with six heavy‑duty 12″ hub‑drums and individual bearing kits. Genuine Lippert parts install easily on most 6,000‑lb axles from Lippert, Dexter, Al‑Ko, Quality and more—delivering smoother, safer towing and simplified upkeep.

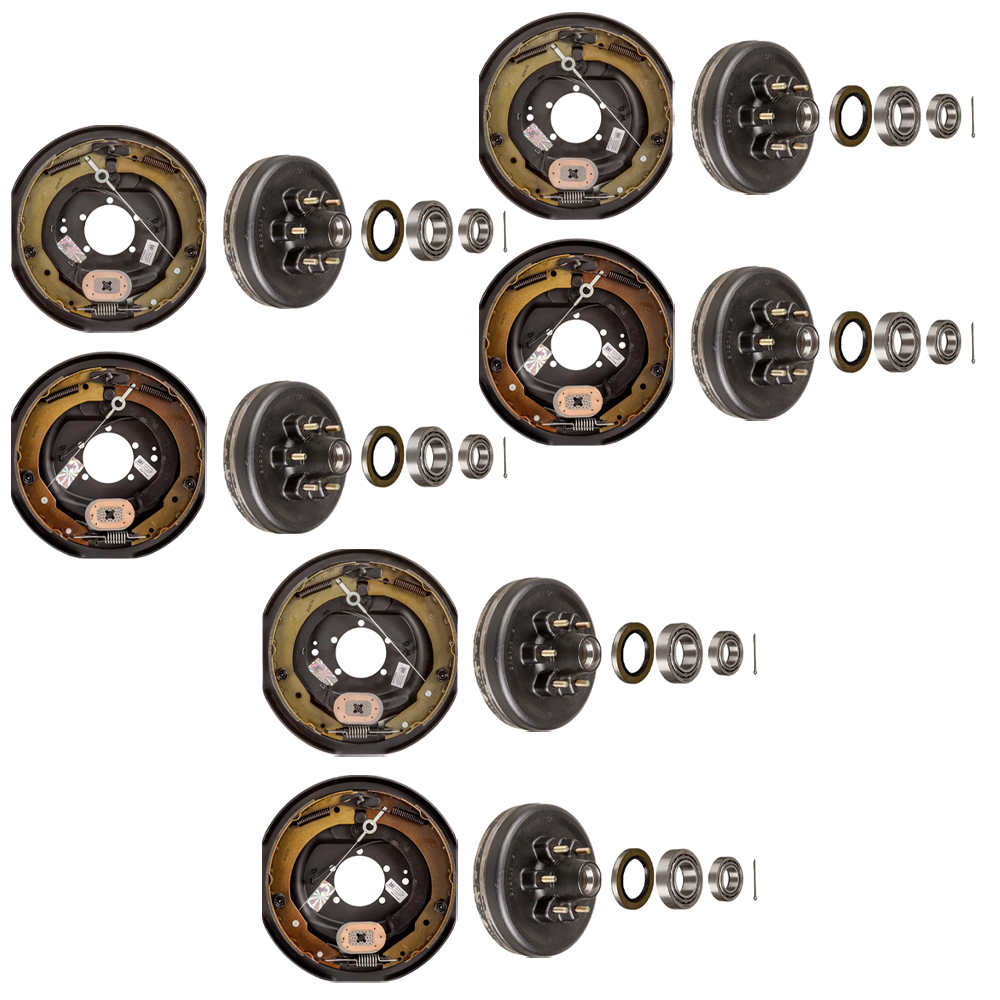

Bundle Contents:
-

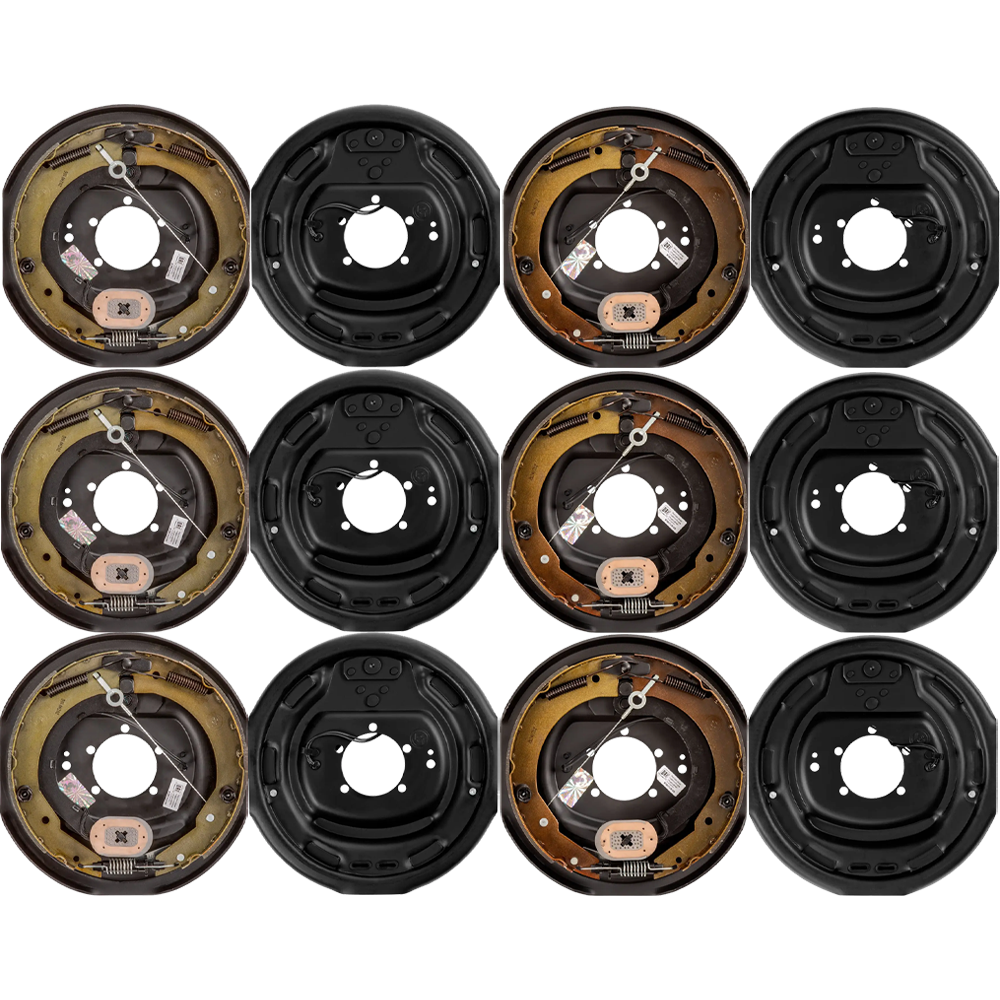

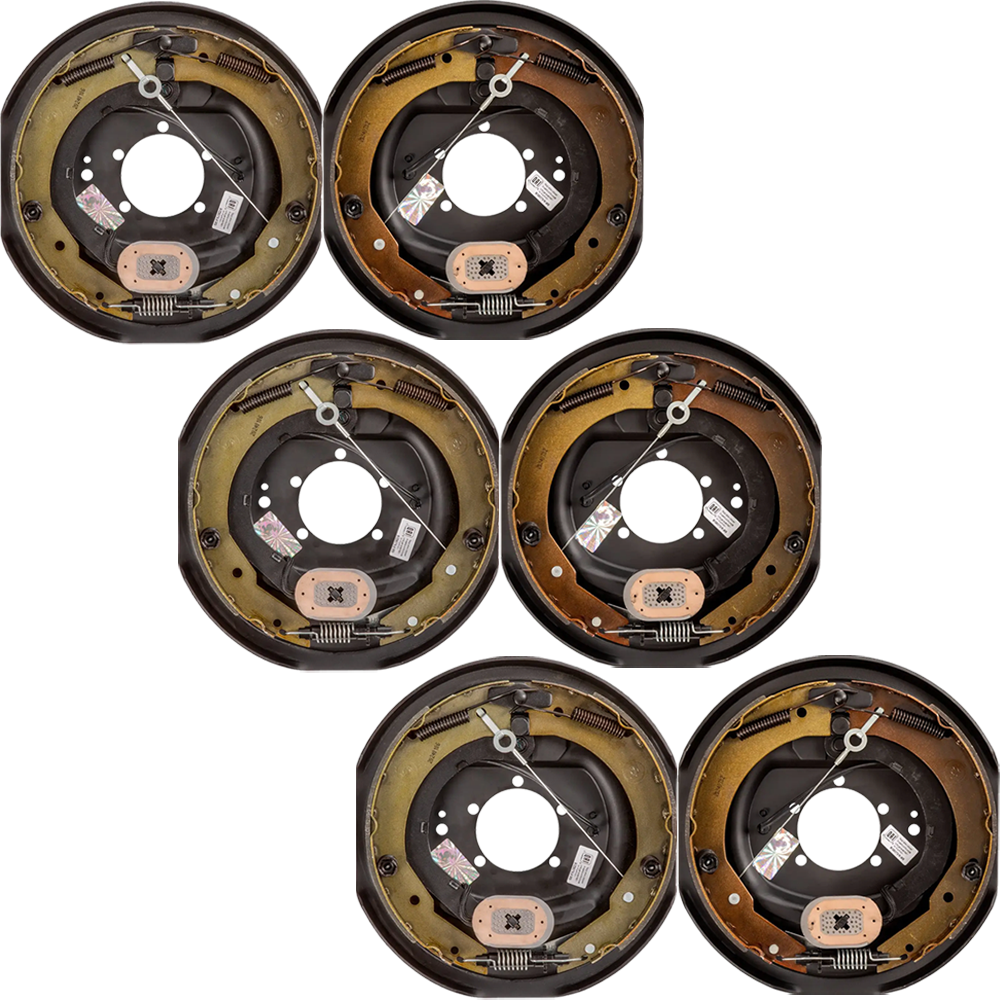

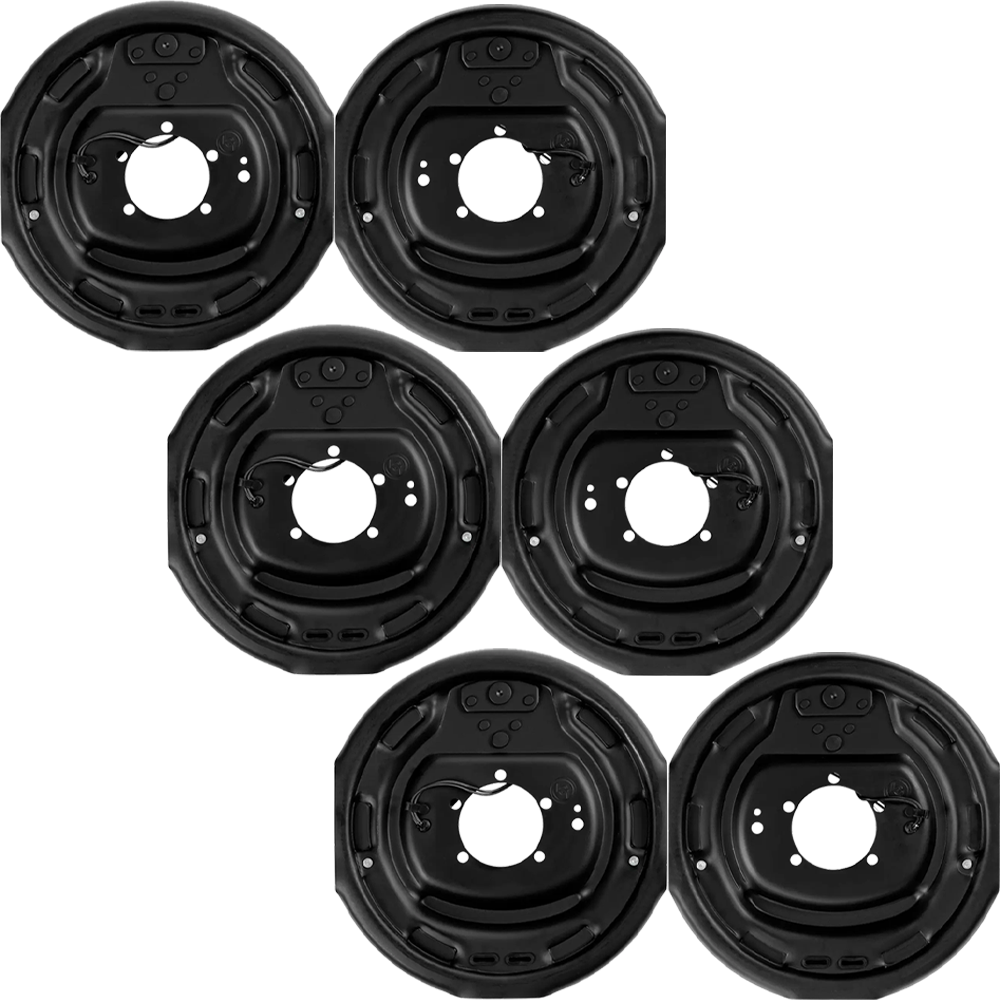

QTY (3): Lippert Forward Self‑Adjusting Brake Assembly – 12″ × 2″, 7,000 lbs. (Left)
- Road‑side replacement electric brake
- Fits 15″–17.5″ wheels; 12″ × 2″ drum
- Rated for 5,200–7,000 lb & 8,000 lb hybrid axles
- Five‑bolt mounting; forward self‑adjusting shoes
- Dexter compatible part #: K23-464-00 | 023-464-00
- Easy DIY installation; 1‑year limited warranty
-
QTY (3): Lippert Forward Self‑Adjusting Brake Assembly – 12″ × 2″, 7,000 lbs. (Right)
- Curb‑side replacement electric brake
- Fits 15″–17.5″ wheels; 12″ × 2″ drum
- Rated for 5,200–7,000 lb & 8,000 lb hybrid axles
- Five‑bolt mounting; forward self‑adjusting shoes
- Dexter compatible part #: K23-465-00 | 023-465-00
- Easy DIY installation; 1‑year limited warranty
-

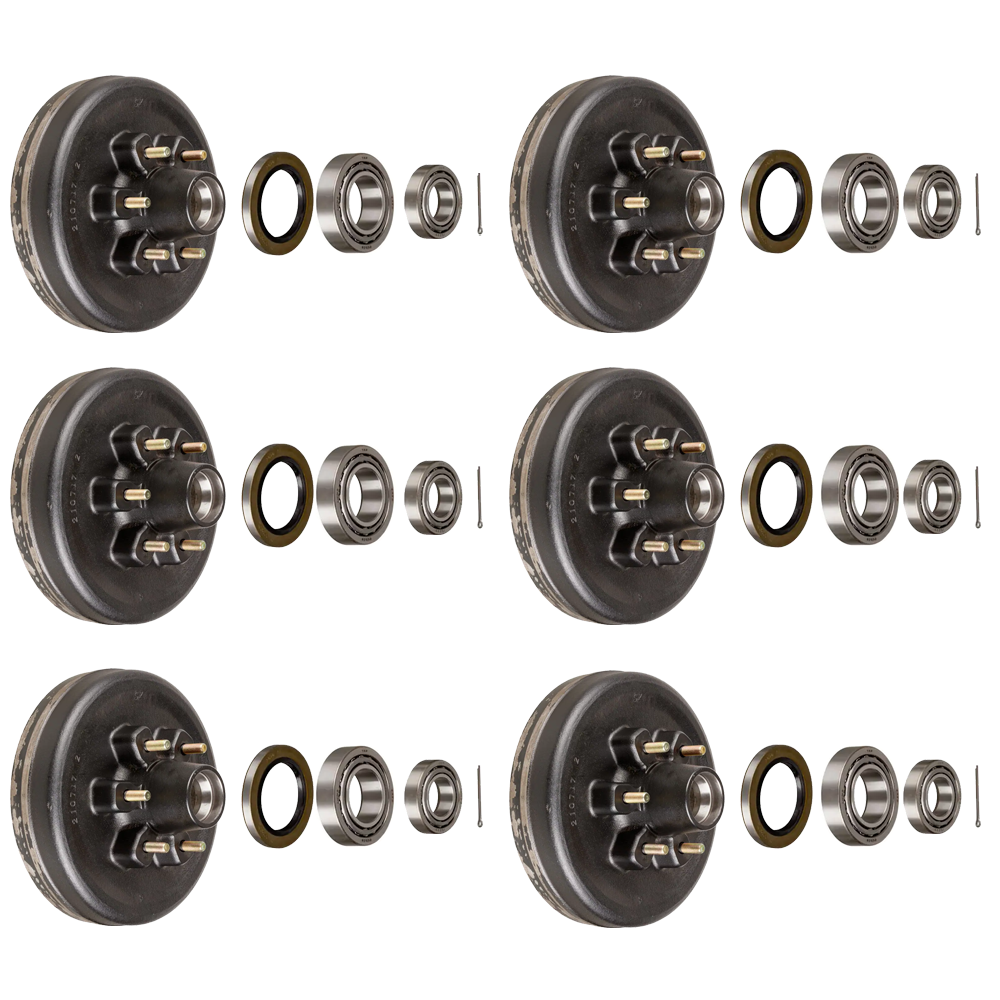

QTY (6): Lippert Brake Drum Hub Assembly – 6 on 5.5″, 1/2″ Stud (6K Axle)
- Solid cast‑iron hub/drum rated 6,000 lbs.
- Fits 14.5″–16.5″ wheels; 12″ drum diameter
- 6 on 5.5″ bolt pattern, 1/2″ studs
- Dexter compatible part #: K08-201-9A
-
Bearing kit (bagged separately, one per hub) includes:
- Inner Bearing Cone
- Inner Bearing Cup
- Outer Bearing Cone
- Outer Bearing Cup
- Cotter Pin
- Double‑Lip Grease Seal
- Hub #122094 | Bearing Kit #333950
- Limited 1‑year warranty
Always confirm drum size, bolt pattern and axle rating with your original equipment. Perform routine inspections and grease bearings regularly for maximum service life.
| Specifications: | |
|---|---|
| Kit Type | Complete Triple‑Axle Brake & Hub‑Drum Kit (w/ Bearings) |
| Axle Rating | 6,000 lbs per axle (bundle limited to hub rating) |
| Brake Drum Dimensions | 12″ × 2″ |
| Brake Mounting Pattern | Brake flange – 5‑bolt |
| Hub Bolt Pattern | 6 on 5.5″ |
| Hub Type | Hub with Integrated Drum |
| Stud Size | 1/2″ Diameter |
| Type of Adjustment | Forward Self‑Adjusting |
| Brake Location | Left (road) & Right (curb) assemblies |
| Wheel Size Compatibility | Brakes – 15″–17.5″ | Hubs – 14.5″–16.5″ |
| Compatible Brands | Lippert, Dexter, Al‑Ko, Quality & others |
