Lippert Triple Axle Suspension Kit – 1.75" Axle Tube, 33" Spacing, 2,500 lb Leaf Springs (23-1/8" Unloaded), Standard Equalizers, Hangers & Hardware

Give your triple-axle trailer an upgrade with this comprehensive Lippert kit. It’s built around six leaf springs rated at 2,500 lbs each (23-1/8" eye-to-eye unloaded length), standard equalizers, hangers, and all the hardware needed for a secure, reliable suspension setup. Designed to fit 1.75" axle tubes at 33" spacing, this kit works great on Dexter, Alko, Lippert, Rockwell, and other quality axle systems.

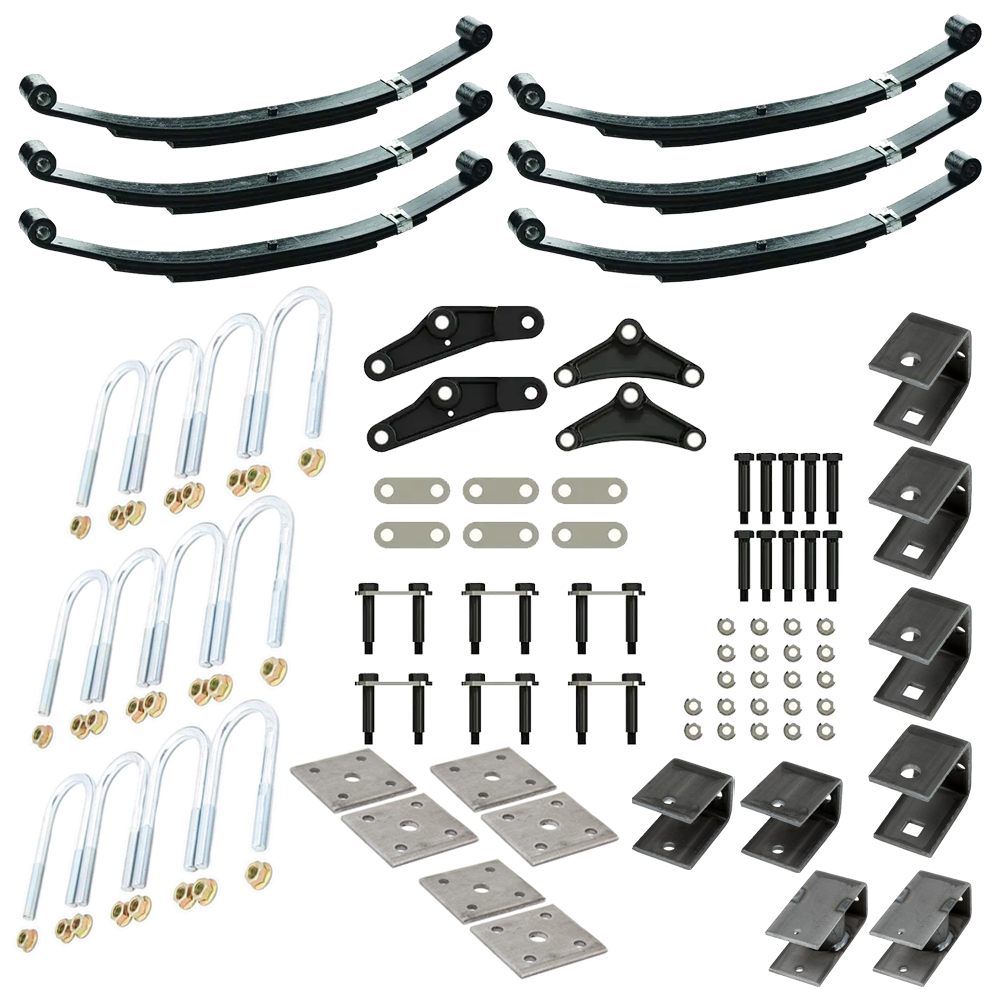

Bundle Contents:

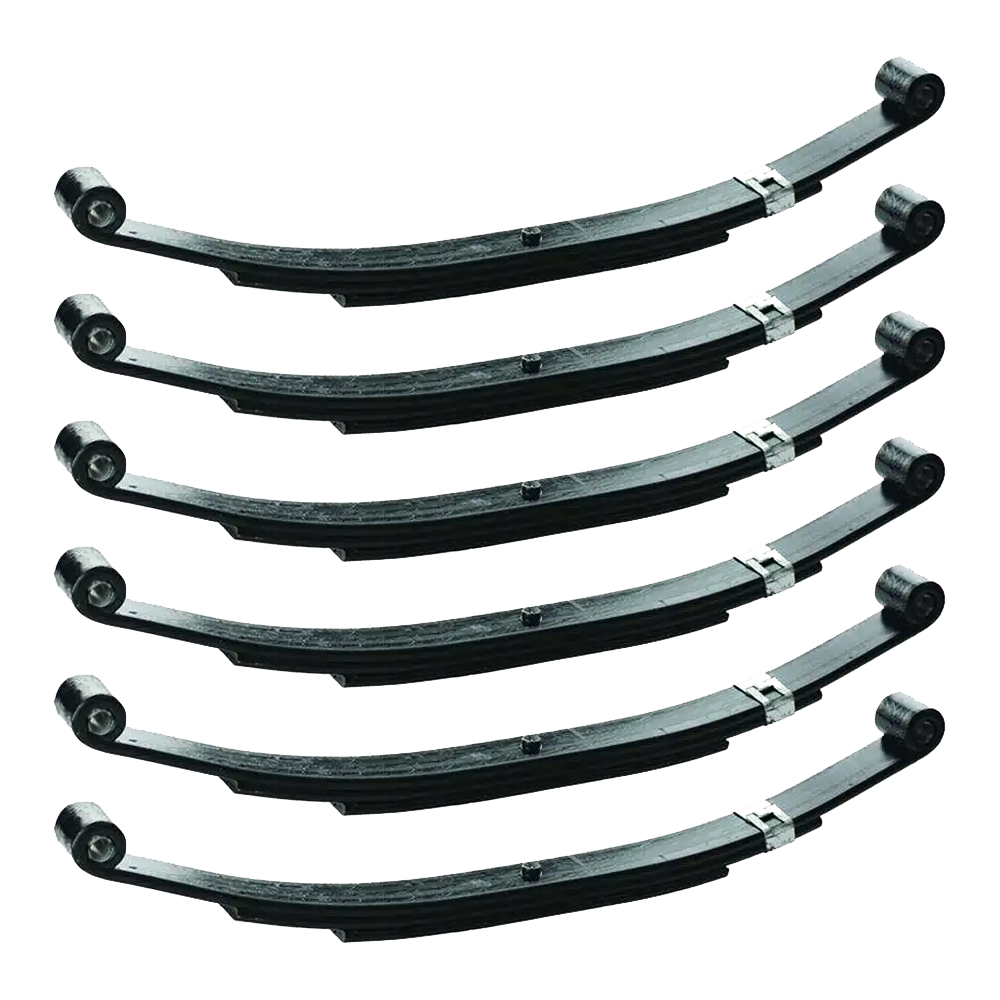

• QTY (6): Lippert 25-1/4" Unloaded Leaf Spring – 2,500 lbs
  • 4 leaves, 1-3/4" wide
  • 23-1/8" eye-to-eye (unloaded), 24" loaded
  • Arch height: 3-1/2" unloaded, 2-1/2" loaded
  • Spring eye diameter: 9/16"

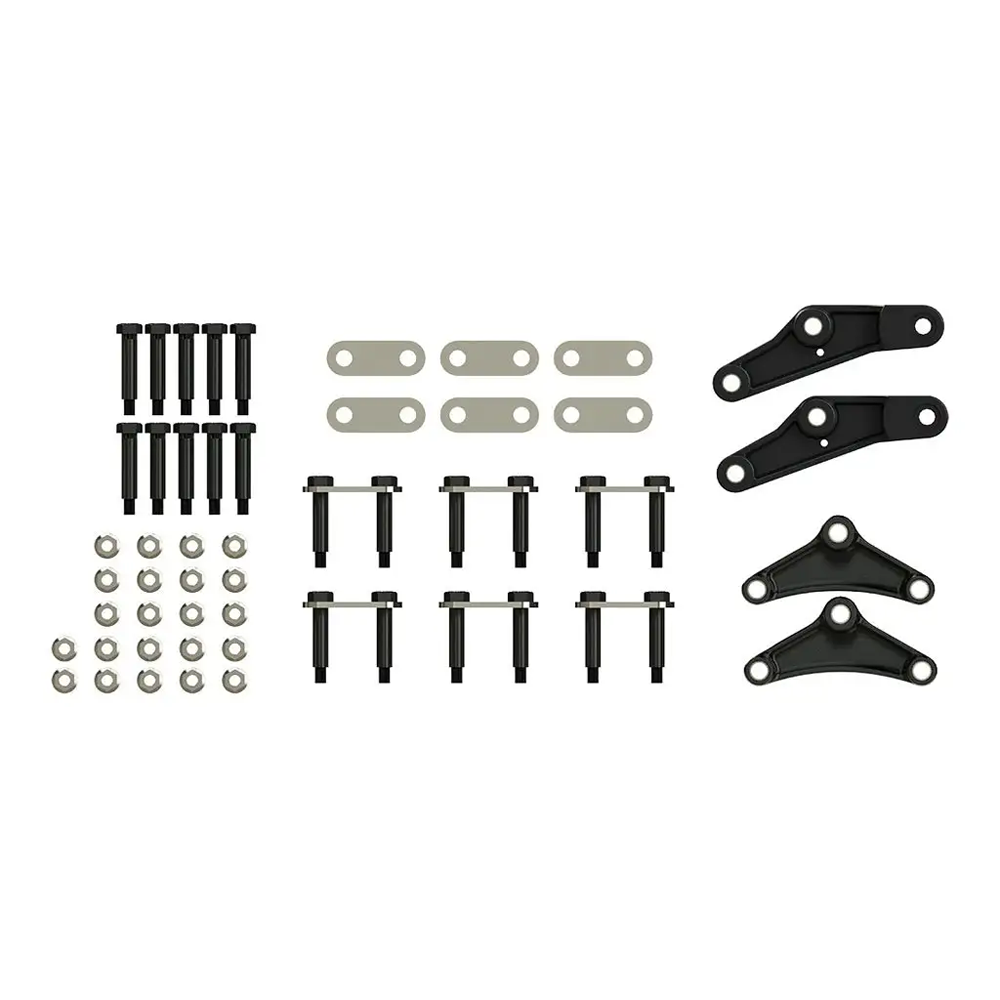

• QTY (1): Triple Axle AP Kit with Standard Equalizers & Standard Bolts
  • Includes shackle links, mounting hardware, and equalizers
  • Helps maintain proper axle alignment and weight distribution
  • Engineered by Lippert for durability and performance

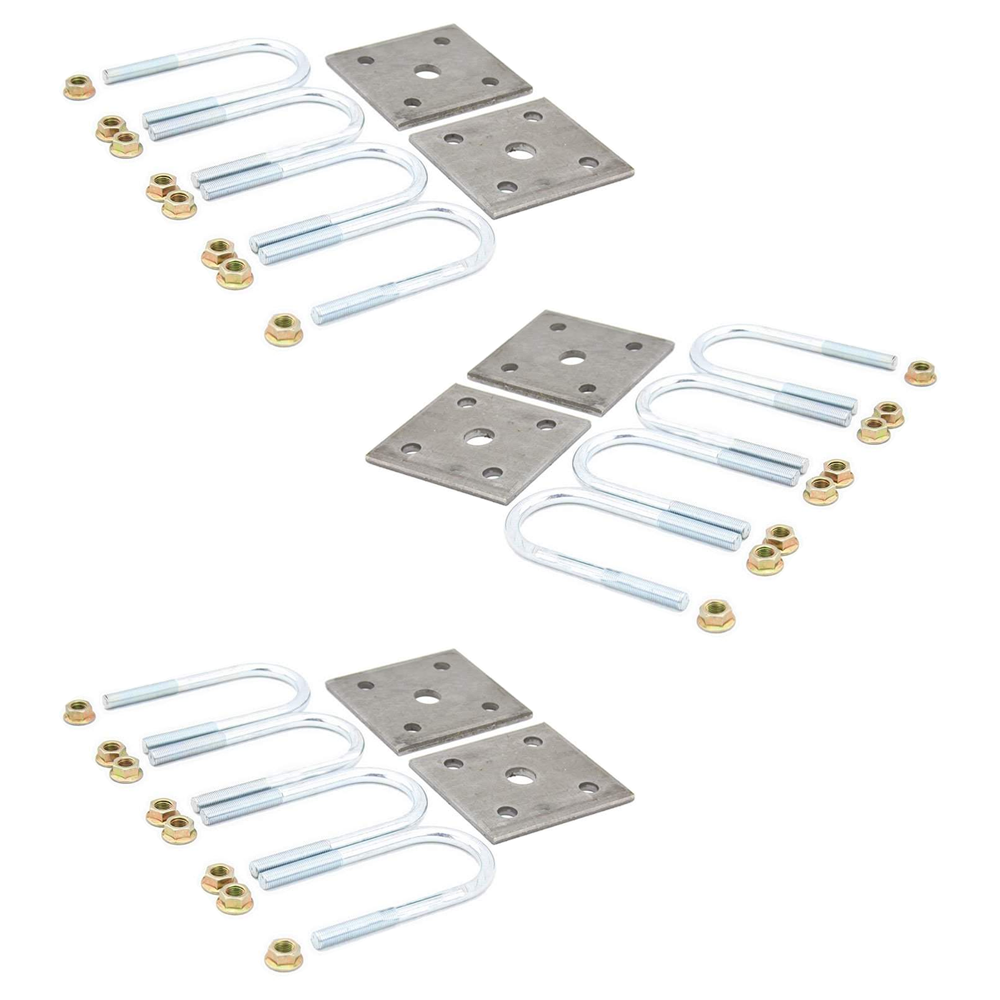

• QTY (3): Axle Mounting Kit – For 1.75" Axle Tube
  • U-bolt design for secure mounting
  • Direct replacement for 1.75" diameter axle tubes
  • Installs just like your original equipment

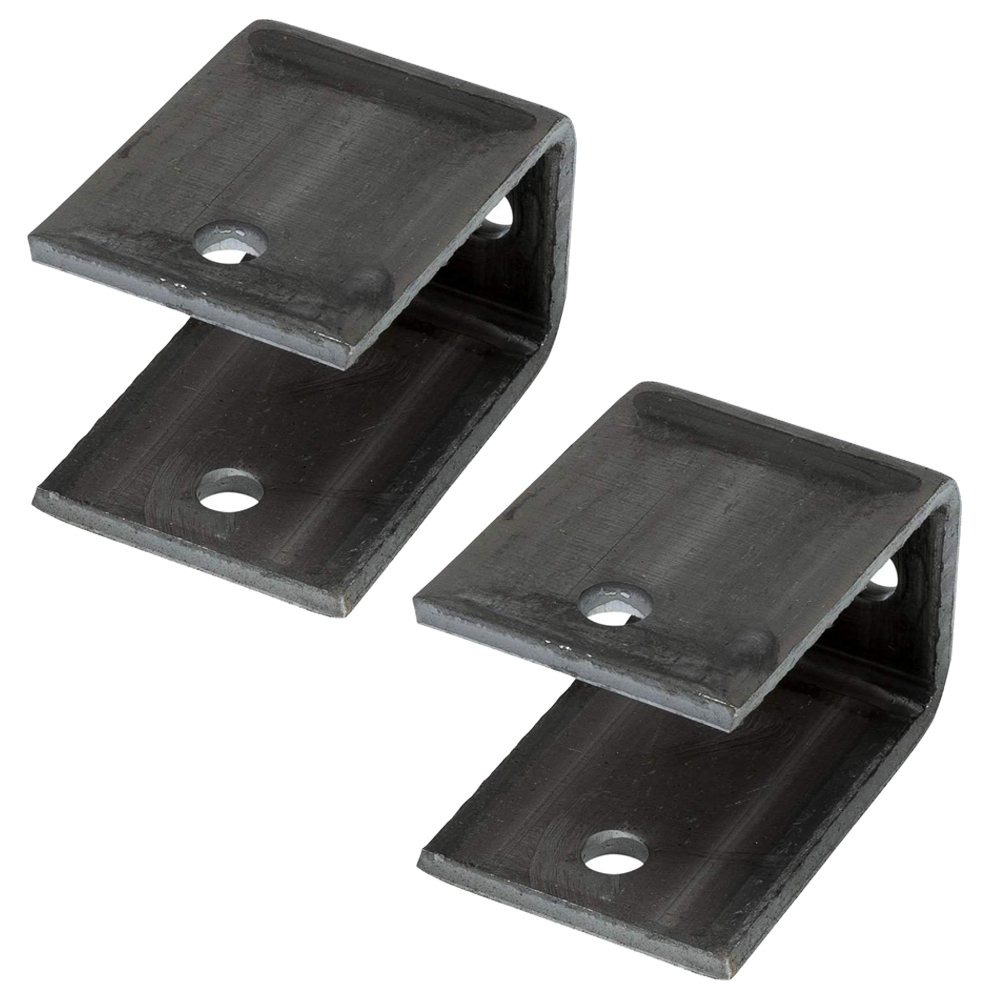

• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200-8,000 lb Rating
  • Distance to hole: 3-9/16" on-center
  • Hole size: 9/16"
  • Secures front axle to trailer chassis
  • Weld-on application for dependable installation
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200-8,000 lb Rating
  • Distance to hole: 3-5/16"
  • Hole size: 7/8"
  • Supports center axle alignment
  • Designed for compatibility with multiple axle brands
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200-8,000 lb Rating
  • Distance to hole: 4"
  • Hole size: 5/16"
  • Ensures proper rear axle positioning
  • Weld-on application for long-lasting performance

Always verify your original equipment specifications before installing or replacing suspension components. Regular inspections and proper maintenance help ensure safe towing and optimal performance.
