Lippert Tandem-Axle 3,500-lb Parking-Brake-Ready Electric Brake & 10? Drum-Hub Kit � Dexter-Compatible

Lippert Tandem-Axle 3,500-lb Electric Brake & 10″ Drum-Hub Bundle

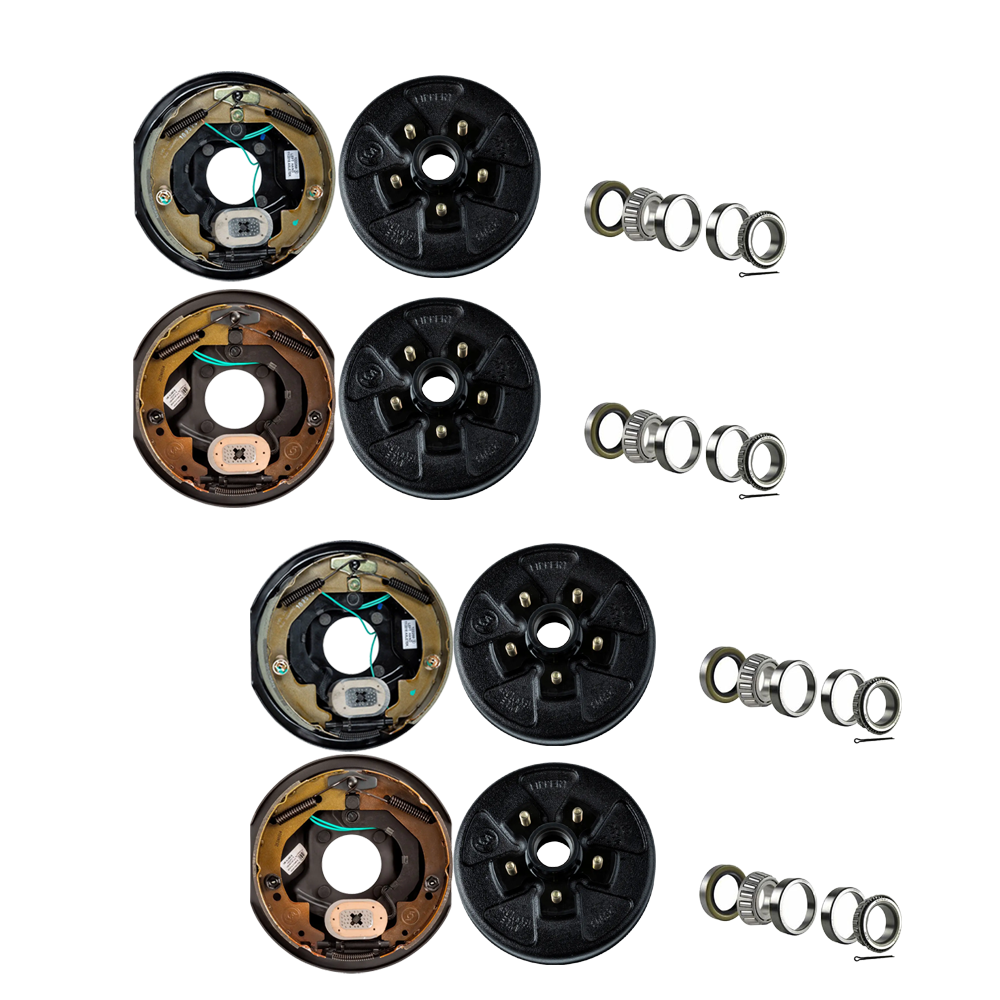

Service both axles in one shot. This Lippert package supplies four 10″ drum-hub assemblies plus matching left- and right-hand electric brakes, delivering parking-brake-ready stopping power for 3,500-lb axles with the common 5-on-4.5″ pattern. Everything is bolt-on and Dexter-compatible, so you spend less time in the shop and more time on the road.

Bundle Contents:

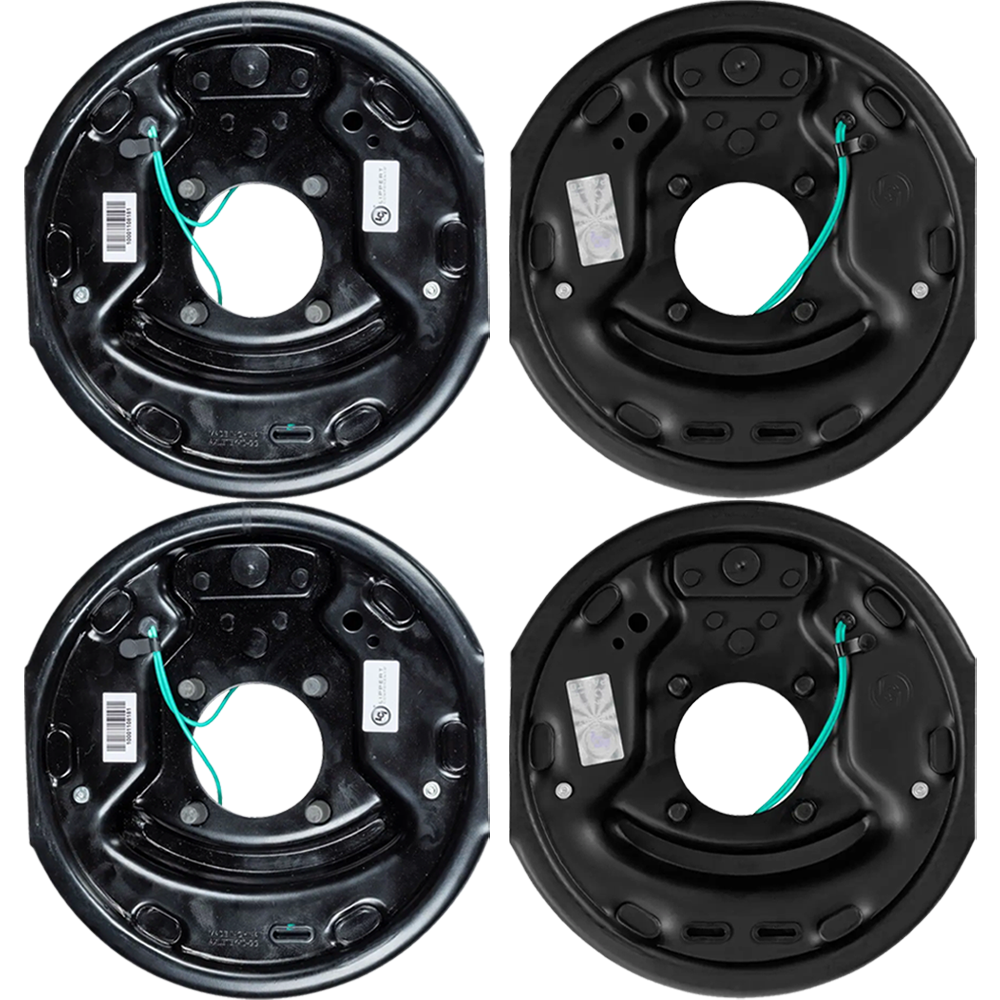

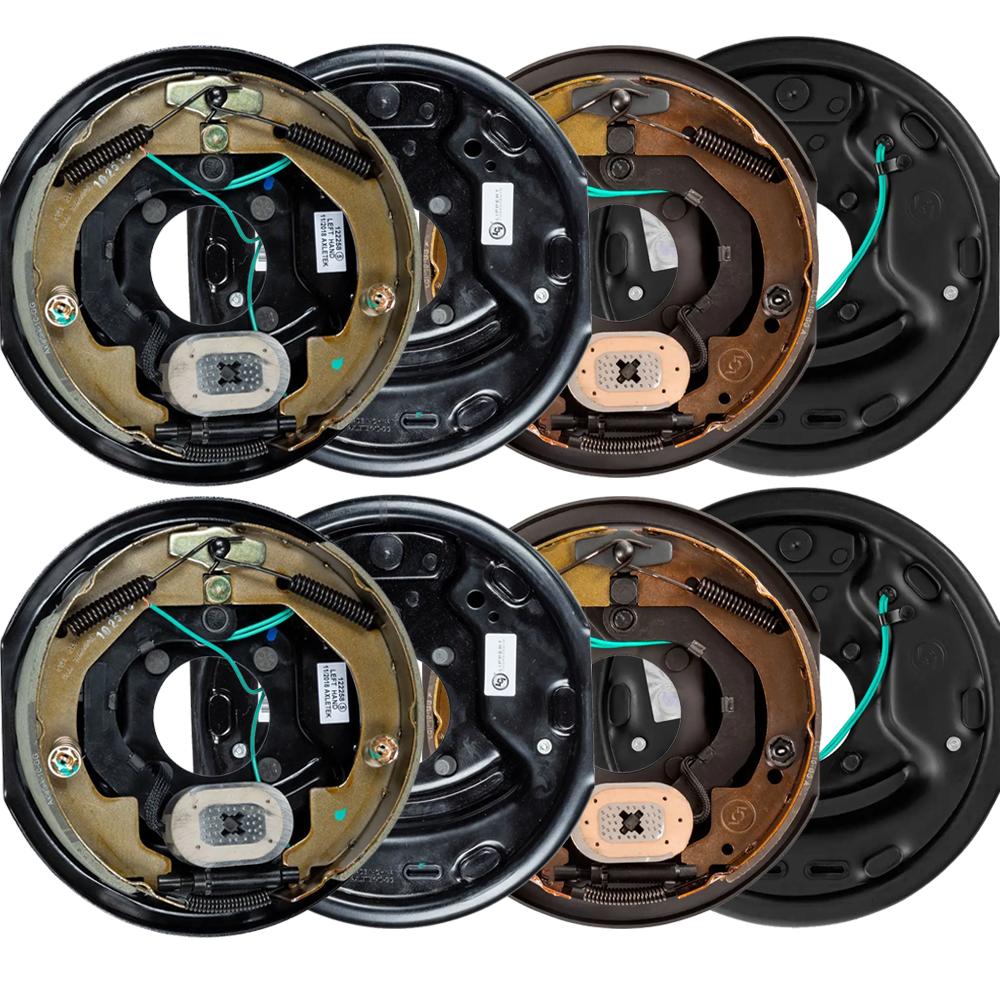

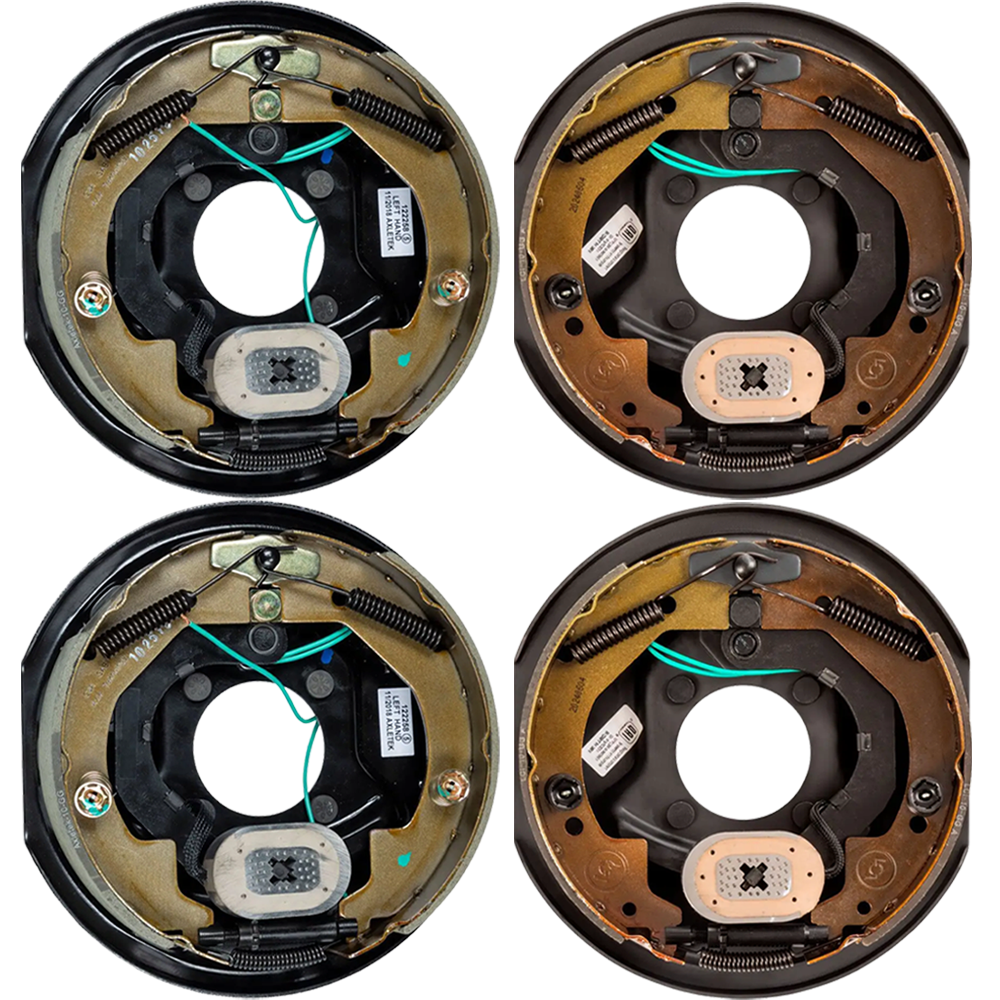

• QTY (2): Lippert 10″ × 2.25″ Electric Brake Assembly – Left (Driver/Roadside)
  • Manual-adjust, parking-brake-ready electric design
  • Fits 3,500-lb axle; 4-bolt brake flange
  • For 13-15″ wheels; 10″ × 2.25″ shoe size
  • Dexter compatible part numbers: K23-026-00 | 023-026-00
  • New brakes require break-in for optimal performance
• QTY (2): Lippert 10″ × 2.25″ Electric Brake Assembly – Right (Passenger/Curb)
  • Identical specs to LH unit for perfect side-to-side balance
  • Manual adjustment simplifies maintenance
  • Dexter compatible part numbers: K23-027-00 | 023-027-00
  • Direct Lippert replacement for OEM assemblies

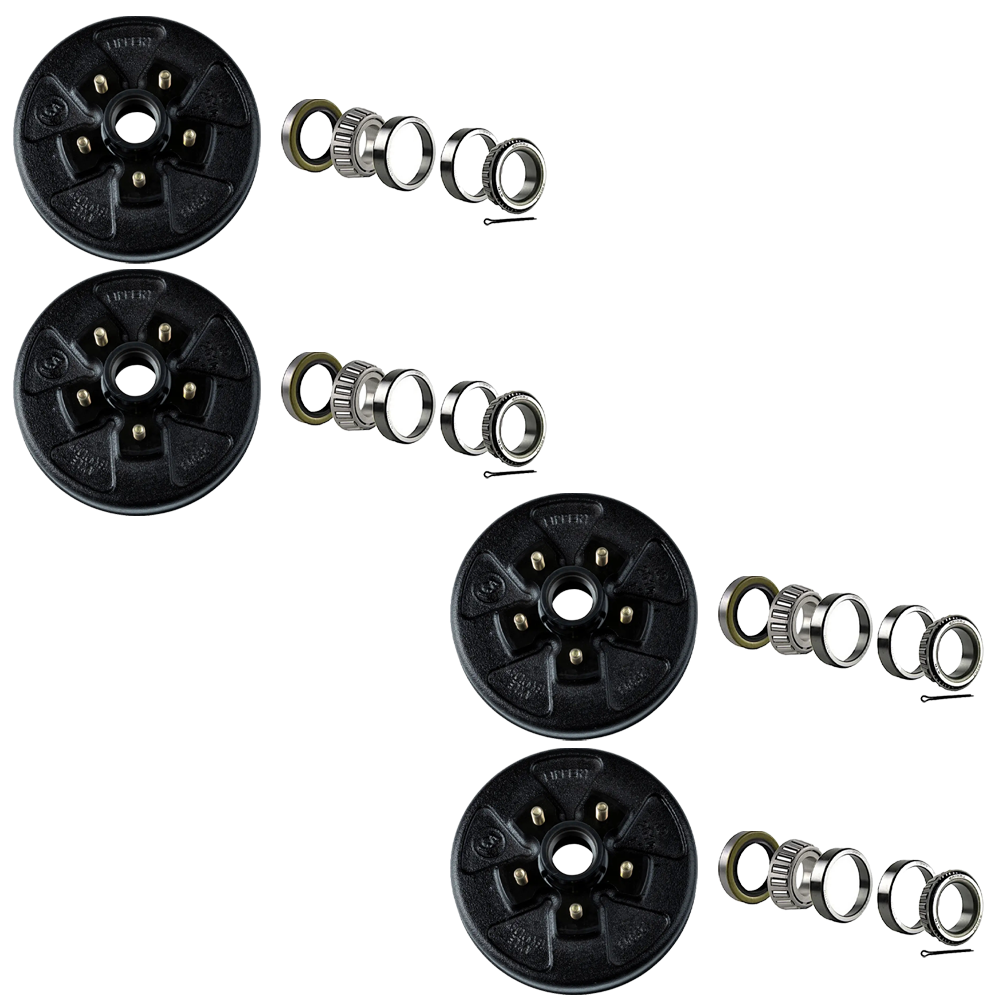

• QTY (4): Lippert 10″ Brake Drum-Hub – 5 on 4.5″, 1/2″ Stud
  • Cast-iron drum with integrated hub for electric brakes
  • 5 on 4.5″ bolt pattern; 1/2″ studs
  • Dexter compatible part numbers: K08-247-94 | 008-247-94
  • Bagged-separately bearing kit (1 per hub) containing:
    • Inner bearing cone & cup (L68149/L68111)
    • Outer bearing cone & cup (L44649/L44610)
    • Double-lip grease seal
    • Cotter pin
  • Fits 3,500-lb axles & 13-15″ wheels (Lippert #126003)

Match components to original equipment, torque lug nuts to spec, and inspect brakes and bearings at recommended service intervals.
