Lippert 7K / 8K Hybrid Quad-Axle 12" Self-Adjusting Brake & Threaded Hybrid Hub-Drum Kit � 8-on-6.5" (9/16" Stud) � Dexter | Alko | Rockwell Compatible

Lippert 7K / 8K Hybrid Quad-Axle 12" Self-Adjusting Brake & Threaded Hybrid Hub-Drum Kit – 8-on-6.5" (9/16" Stud)

Upgrade or overhaul your quad-axle trailer with genuine Lippert® components in one convenient bundle. This kit is rated for up to 7,000 lbs per axle on standard axles and is factory-approved for Lippert 8,000-lb hybrid axles that use 12" × 2" brakes—delivering confident stopping power, easier maintenance and full compatibility with Dexter, Alko and Rockwell axles.

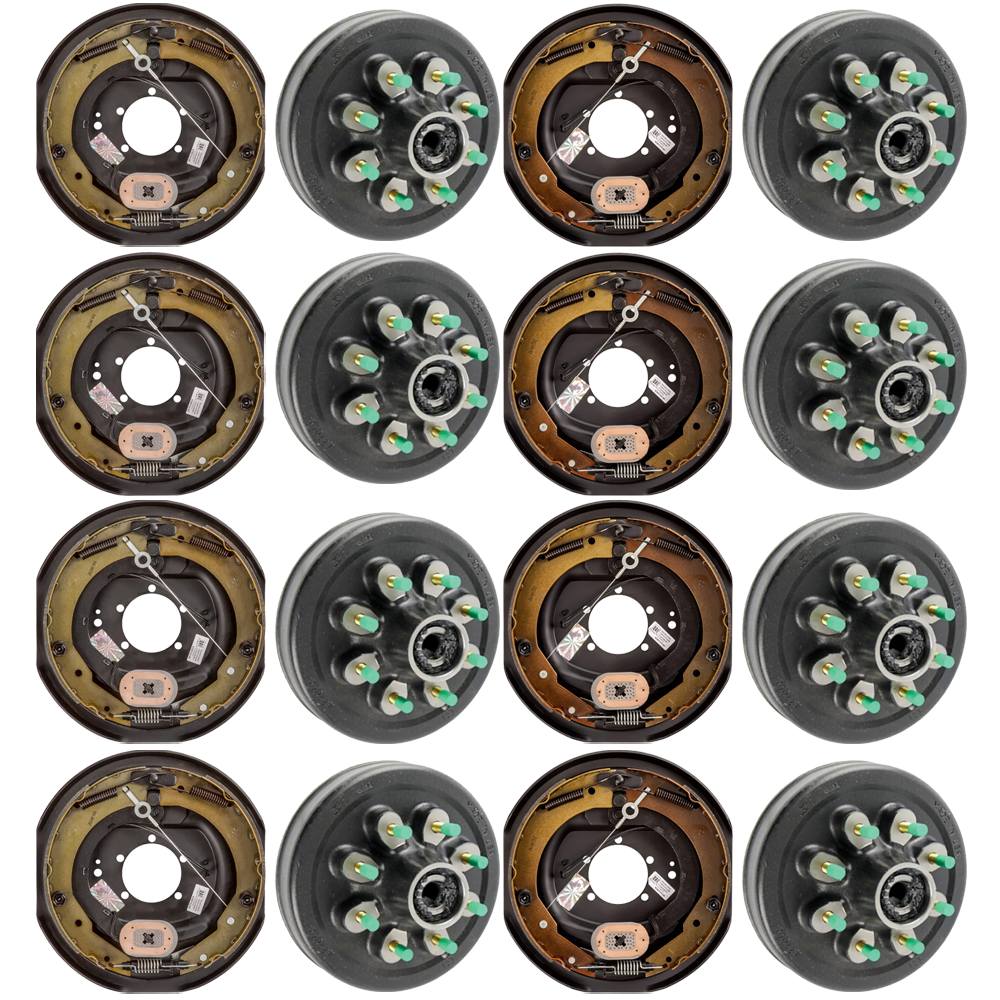

Bundle Contents:

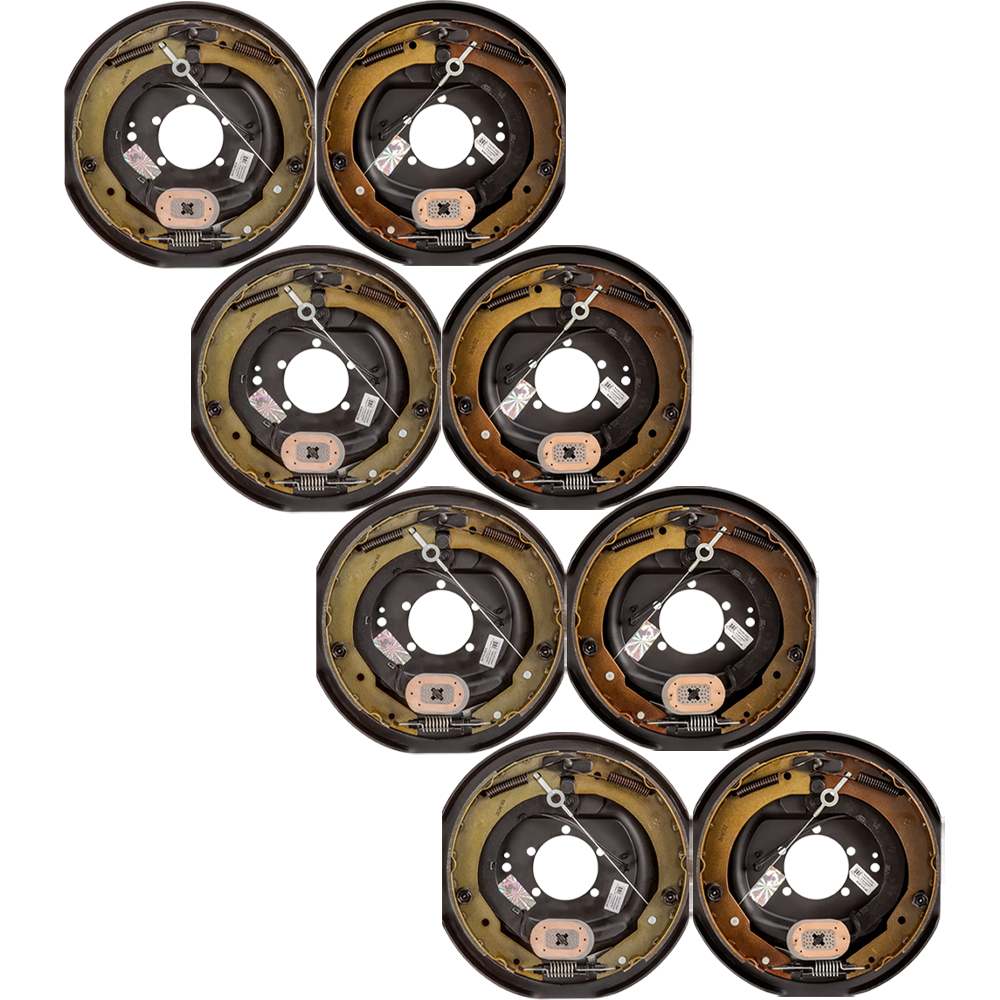

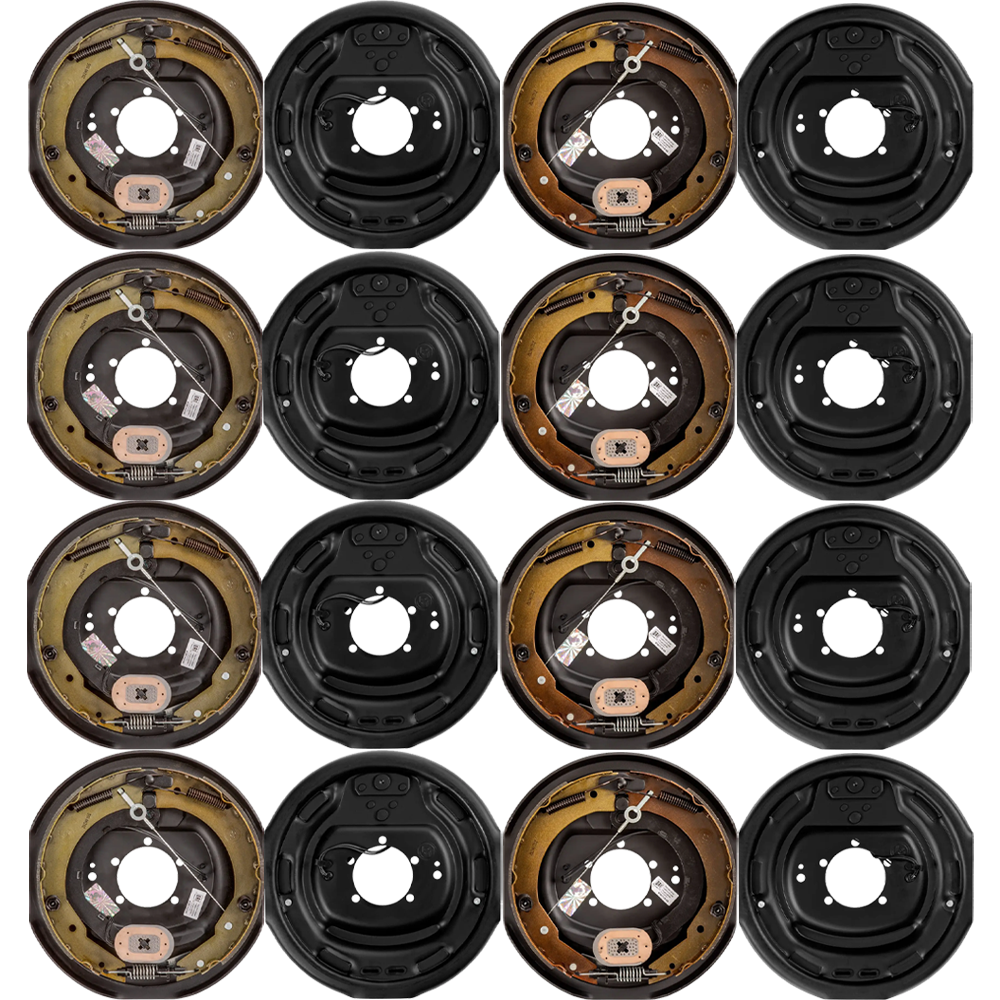

• QTY (4): Lippert 12" × 2" Forward Self-Adjusting Electric Brake Assembly – 7K, Left Hand
  • Road-side (left) installation
  • Fits 15" – 17.5" wheels
  • Forward self-adjusting shoes
  • Five-bolt brake flange
  • For 5,200-7,000-lb & 8K hybrid axles
  • Dexter compatible PN: K23-464-00 | 023-464-00
  • Pre-assembled backing plate for DIY installs
  • 1-year limited warranty
• QTY (4): Lippert 12" × 2" Forward Self-Adjusting Electric Brake Assembly – 7K, Right Hand
  • Curb-side (right) installation
  • Fits 15" – 17.5" wheels
  • Forward self-adjusting shoes
  • Five-bolt brake flange
  • For 5,200-7,000-lb & 8K hybrid axles
  • Dexter compatible PN: K23-465-00 | 023-465-00
  • Pre-assembled backing plate for DIY installs
  • 1-year limited warranty

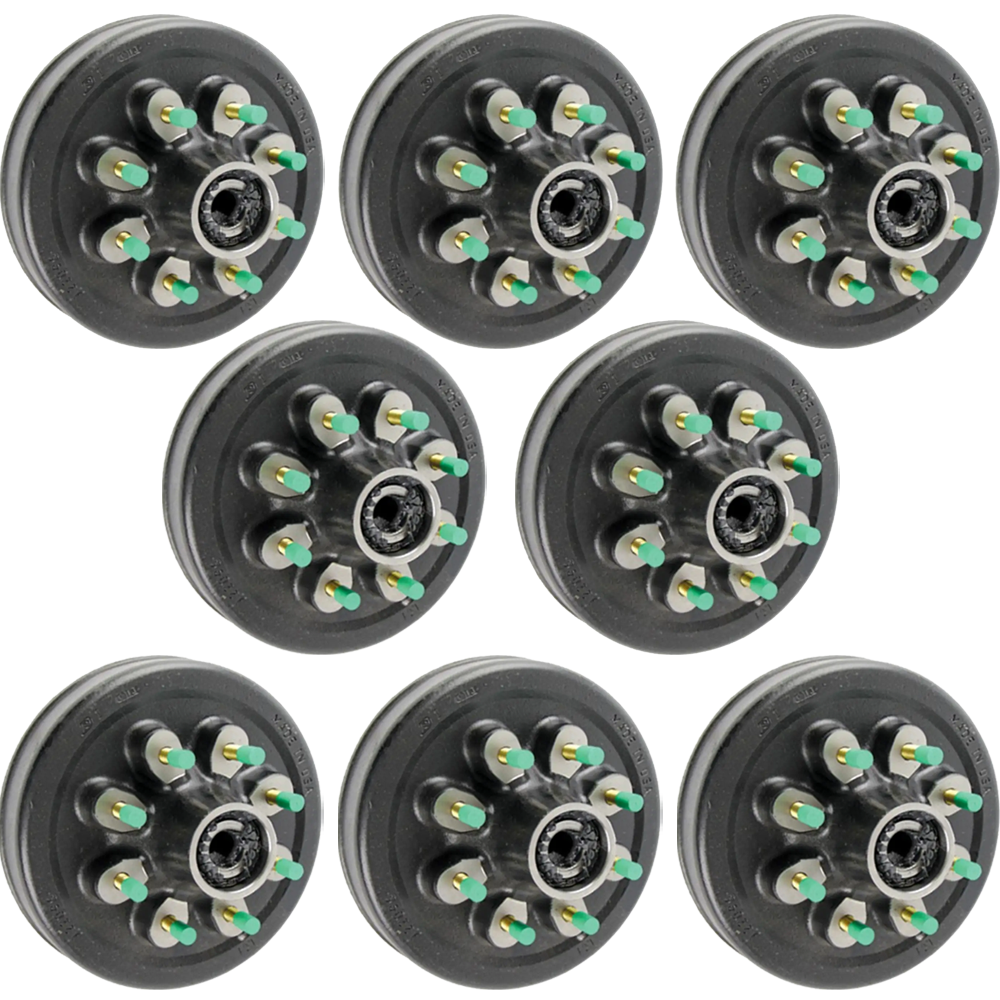

• QTY (8): 12" Threaded Hybrid Trailer Brake Hub-Drum – 8K, 8-on-6.5", 9/16" Studs
  • 8,000-lb axle rating (electric or hydraulic)
  • Cast-iron drum with threaded Valcrum™ cap port
  • Races & wheel studs come pre-installed
  • Standard 8-on-6.5" bolt circle, 9/16" studs
  • Accepts 16" – 17.5" wheels
  • Dexter / Alko / Rockwell compatible
  • 1-year limited warranty

Always verify hub bolt pattern, brake size and axle rating before ordering, and perform routine bearing service for maximum on-road safety.
