Lippert 16K Self-Adjusting Electric Brake (RH) & Threaded 16K Hub-Drum Kit � 12-1/4? � 5?, 8-on-275 mm � Compatible with Dexter, Alko, Rockwell, Quality Axles
$699.99

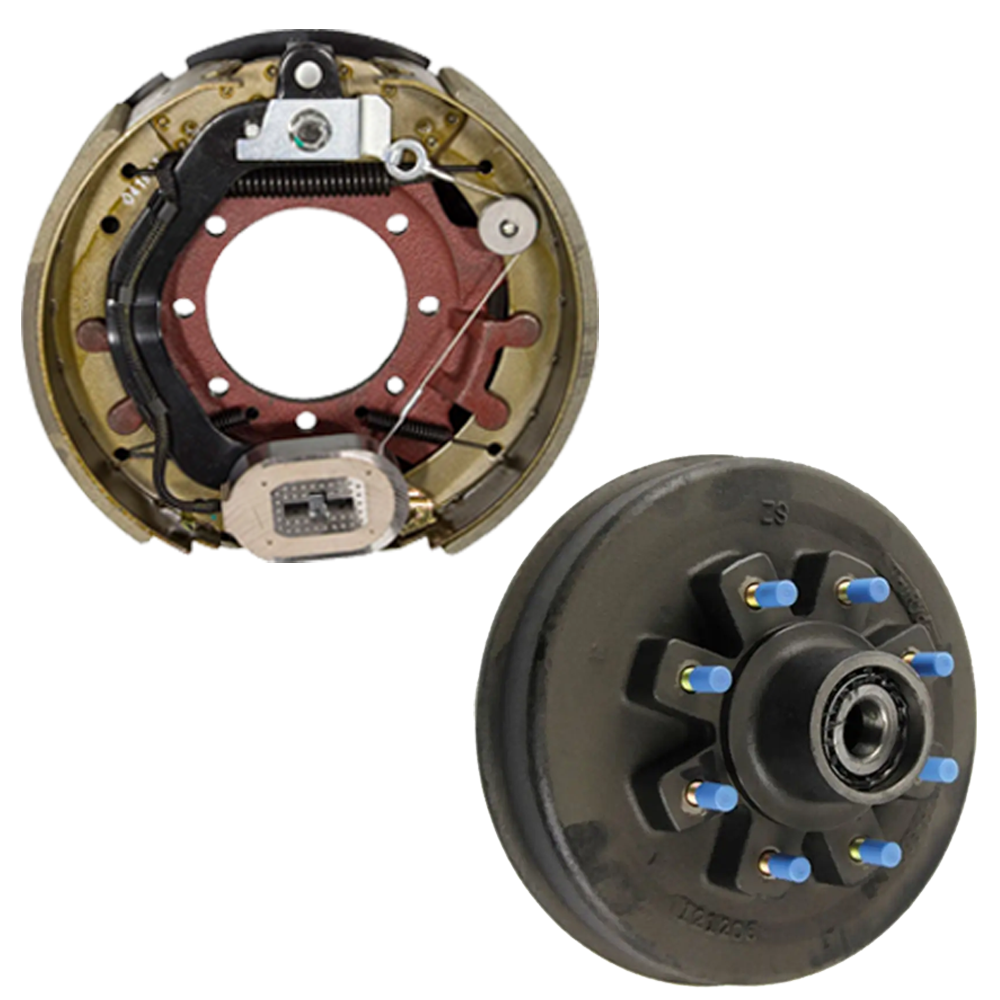

Lippert 16K Right-Hand Electric Brake & Hub Assembly Kit – Self-Adjusting 12-1/4″ × 5″
Refresh the stopping power of your heavy-duty trailer with authentic Lippert components. This convenient bundle combines a forward self-adjusting 12-1/4″ × 5″ electric brake (right/passenger side) and a threaded 16K oil-bath hub/drum, giving you everything you need for a fast, reliable service on 16,000-lb axles.
Bundle Contents:
-

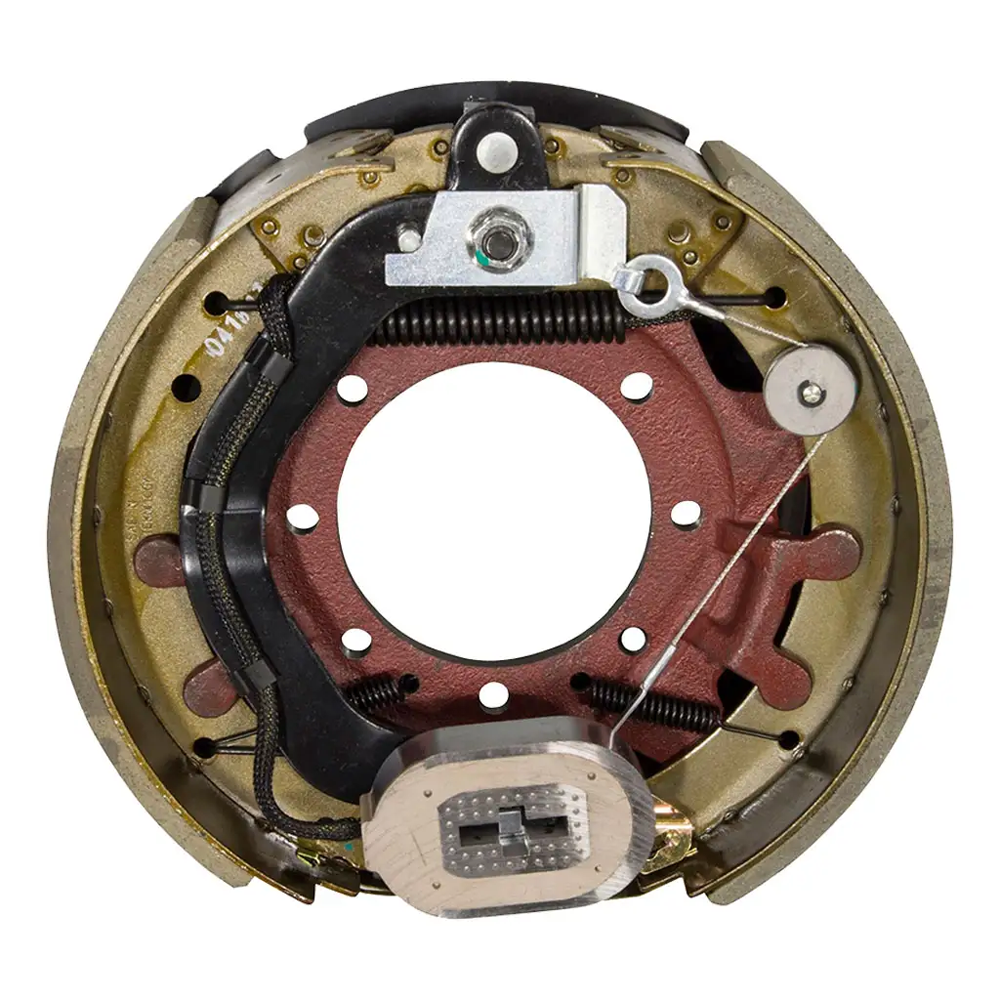

QTY (1): Forward Self-Adjusting Electric Brake – 12-1/4″ × 5″, RH, 12-16K, 7-Bolt
- Brake size: 12-1/4″ × 5″ (passenger/right)
- Seven-bolt mounting pattern for 12K-16K axles
- Forward self-adjust delivers up to 50 % shorter stopping distance
- Electric design eliminates hydraulic lines for easier install
- Genuine Lippert part – universally compatible with Dexter, Alko & more
-

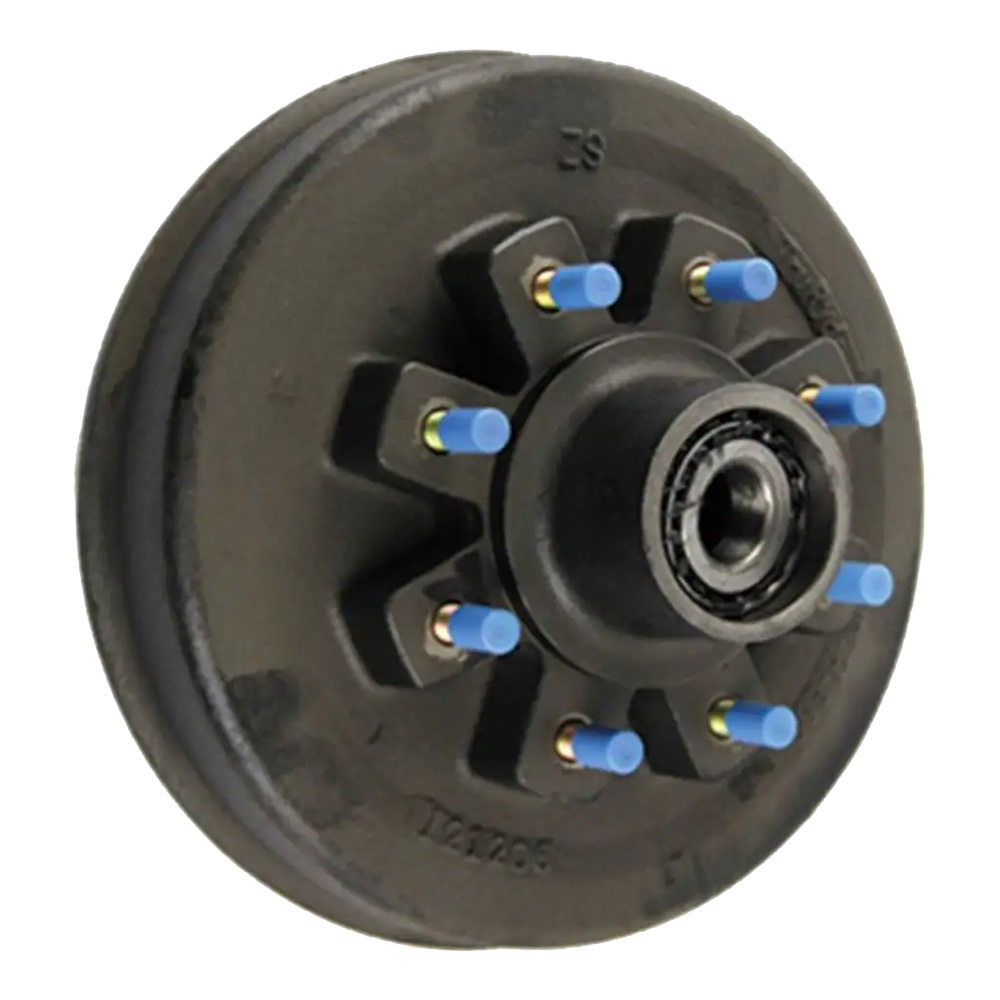

QTY (1): Threaded Trailer Hub/Drum – 16,000 lb, 8-on-275 mm, 17-1/2″ Wheel, M22 Studs
- Rated for 16,000-lb axles; works with electric or hydraulic drums
- 8-on-275 mm bolt circle with M22 × 1.5 threaded studs
- Pre-installed races & studs; accepts Valcrum threaded caps
- Durable cast-iron drum pairs with 12-1/4″ brake shoes
- Backed by Lippert 1-year warranty
Verify your axle tag, brake size and bolt pattern before ordering. Perform routine bearing service and torque checks to maximize component life and towing safety.
| Specifications: | |
|---|---|
| Kit Type | Electric Brake & Threaded Hub-Drum Assembly |
| Axle Rating | 16,000 lb |
| Brake Drum Dimensions | 12-1/4″ × 5″ |
| Brake Mounting Pattern | 7-bolt |
| Hub Bolt Pattern | 8-on-275 mm |
| Hub Type | Threaded oil-bath hub/drum |
| Stud Size | M22 × 1.5 |
| Type of Adjustment | Forward self-adjusting |
| Brake Location | Right-Hand (Passenger) |
| Wheel Size Compatibility | 17-1/2″ |
Order today or call us at 877-869-6690 for expert advice and personalized service.
