Lippert 10? � 2.25? RH Self-Adjusting Electric Brake & 3,500-lb 5-on-4.5 Drum Hub Kit � Dexter / Alko / Rockwell Compatible

Lippert 10″ × 2.25″ Self-Adjusting Electric Brake & 3,500-lb Drum Hub Kit – Right-Hand

Restore factory-fresh stopping power on your 3,500-lb trailer axle with this Lippert bundle. It pairs a forward self-adjusting right-hand electric brake with a heavy-duty 5-on-4.5 cast-iron hub/drum, complete with a fully bagged bearing kit, so you can swap parts quickly and get back on the road with confidence.

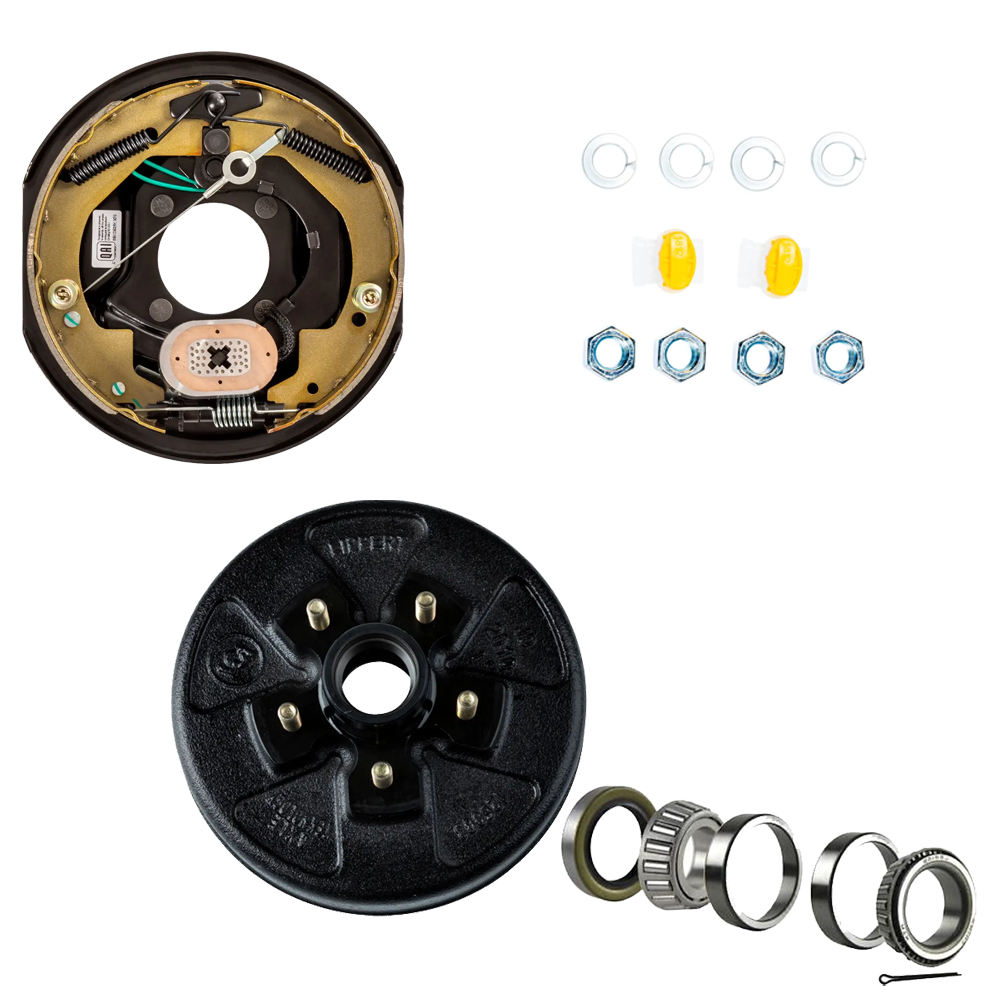

Bundle Contents:

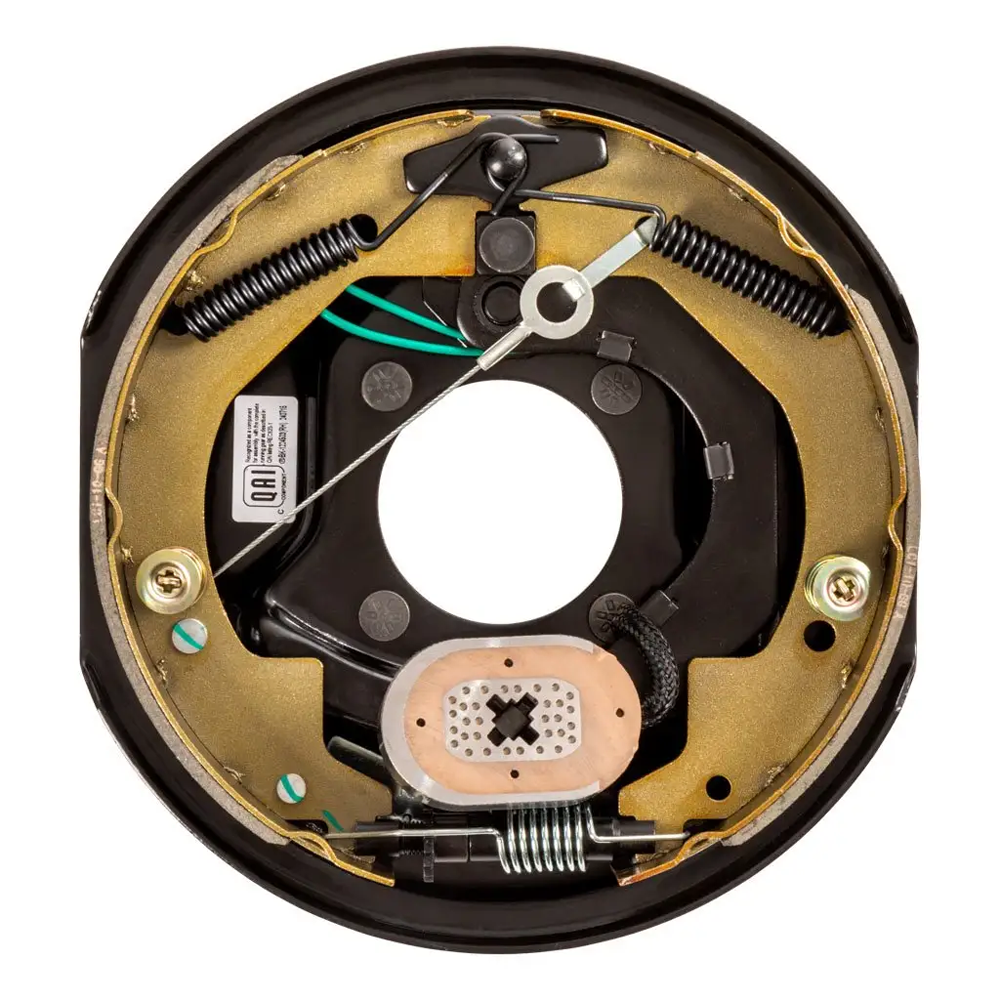

• QTY (1): Lippert Forward Self-Adjusting Brake Assembly – 10″ × 2.25″, 3,500 lbs (Right-Hand)
  • Forward self-adjusting—no manual star-wheel tweaks after break-in
  • Right-hand / curb-side mounting, 4-bolt brake flange
  • Fits 13″, 14″, 14.5″ & 15″ wheels on 3,500-lb axles
  • Dexter compatible PN: K23-469-00 | 023-469-00
  • Pre-assembled shoes, springs & magnet for simple DIY swap
  • 1-year limited Lippert warranty

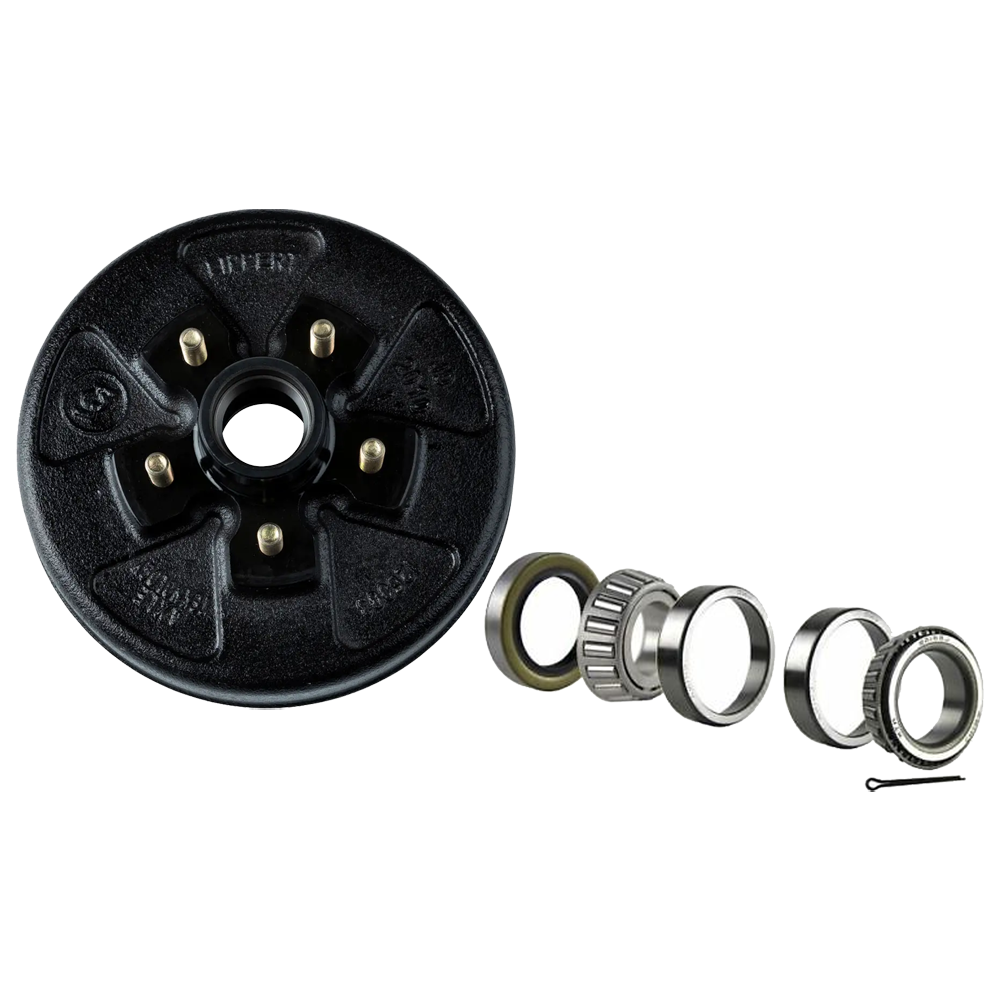

• QTY (1): Lippert 10″ Brake Drum Hub Assembly – 5 on 4.5, 1/2″ Studs, 3,500 lb Axle
  • Precision-machined cast-iron drum for consistent braking surface
  • 5 on 4.5 bolt circle with 1/2″ pre-pressed studs
  • Bearing kit (bagged separately, one per hub) includes:
    • Inner bearing cone
    • Outer bearing cone
    • Inner bearing cup
    • Outer bearing cup
    • Double-lip grease seal
    • Cotter pin
  • Brake drum #126003 • Bearing kit #333948
  • Compatible with Dexter & Al-Ko 3,500-lb axles
  • One-year limited warranty

Match these components to your original axle, use high-temperature wheel-bearing grease, and inspect shoes, magnets, seals, and bearings at every service interval for peak performance and safety.
