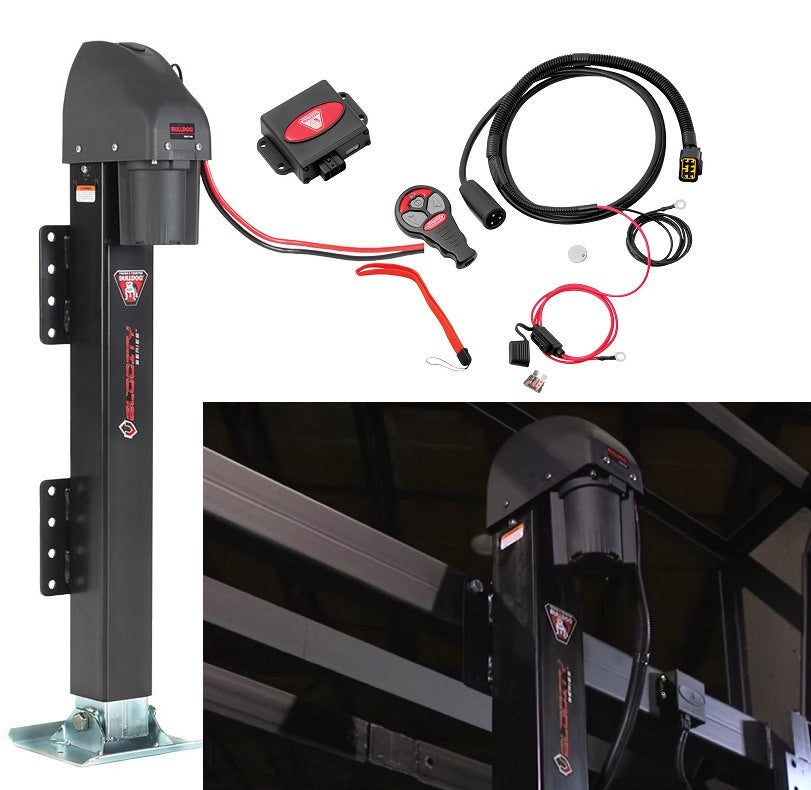

Bulldog Wireless 12000 Pound High-Speed Electric Landing Gear Trailer Jack Stand Velocity Series with Remote 24 Inch Lift 185402 500527

$1,513.22

Effortlessly Lift Your Trailer with Bulldog's High Speed Powered Electric Jack Stand

The Bulldog Velocity Series High Speed Jack is a high-speed system, equipped with a wireless remote control, allowing for a lift capacity of up to 12,000 lbs. per leg with secure, two-way digital transmission for control up to 90 feet away. Installation is easy; mounting is not required, nor is hydraulic oil, hoses, or pumps. This system offers 24” of travel with an approximate travel speed and current draw of 31 Inches per minute with no load and 15 amps, 30 Inches per minute at 4,000 lbs. with 40 amps, 26 Inches per minute at 8,000 lbs. with 65 amps, and 21 Inches per minute at 12,000 lbs. with 100 amps. It also features a manual override in the case of power loss. The system has a lift capacity of 12,000 lbs. and a retracted bracket height of 44.8", an extended bracket height of 69.1", and a travel/lift of 24". Additionally, the 12-volt motor can lift 20"/minute with a 10x10 footplate, 4" outer tube, and a drop leg with heavy-duty base offering 13.50" of additional adjustment.

• Fits a variety of applications for OEM and Aftermarket Industrial, Horse & Livestock, and RV Applications
• Wireless pluh & Play remote control DC hoists with a 3-pin connector.
• Secure, two-way digital transmissions deliver reliable control from up to 90 feet away
• Easy to install – Mounts without welding and requires no hydraulic oil, hoses, or pumps
• Fully Powered – 12,000 lbs. capacity per leg with Proprietary high-speed system
• 24” of travel
• Approximate Travel Speed and Current Draw
• 31 Inches per minute at no load, 15 amps
• 30 Inches per minute at 4,000 lbs., 40 amps
• 26 Inches per minute at 8,000 lbs., 65 amps
• 21 Inches per minute at 12,000 lbs., 100 amps
• Manual override in case of power loss

Specifications:

• Lift Capacity: 12,000 lbs.

• Retracted Bracket Height: 44.8"

• Extended Bracket Height: 69.1"

• Travel/Lift: 24"

• 12 Volt Motor - Lifts 20"/minute

• Drop Leg w/ heavy-duty base (Drop Leg offers 13.50" of additional adjustment)

• 10x10 footplate

• 4" Outer Tube
